Panasonic Electronic Components
3.5 X 2.9 X 1.7MM / 3.5N / 0.15M

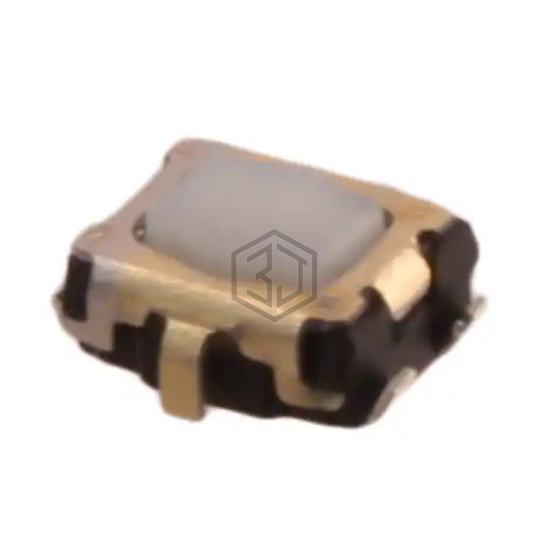

EVP-AAQ02W is a Tactile Switches manufactured by Panasonic Electronic Components. 3.5 X 2.9 X 1.7MM / 3.5N / 0.15M. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, termination style J Lead, circuit SPST-NO.
In Stock: 2,056
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.02A @ 15VDC |
| Actuator Type | Standard |
| Mounting Type | Surface Mount |
| Actuator Height off PCB, Vertical | 1.70mm |
| Actuator Length, Right Angle | - |
| Actuator Orientation | Top Actuated |
| Termination Style | J Lead |
| Outline | 3.50mm x 2.90mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 350gf |
| Ingress Protection | - |
| Features | Grounding Pin |
| Operating Temperature | -40°C ~ 85°C |
Submit your RFQ for EVP-AAQ02W and get a quote within 24 hours.
