Panasonic Electronic Components
FIXED IND 2.7UH 17.5A 1.56 MOHM

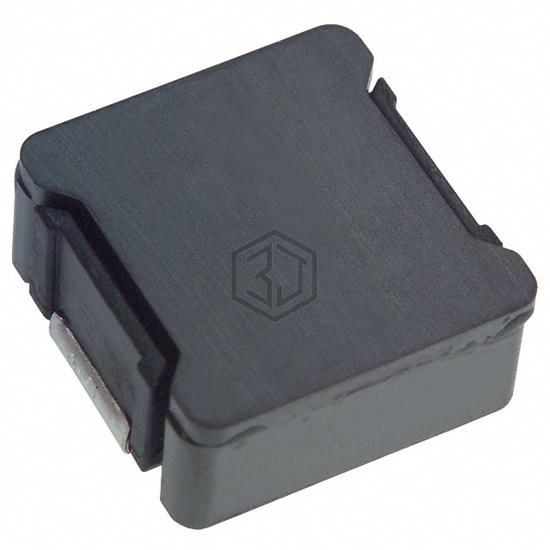

ETQ-PAF2R7HFA is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 2.7UH 17.5A 1.56 MOHM. Key specifications: mounting type Surface Mount, package / case 2-SMD, J-Lead, current rating (amps) 17.5 A, size / dimension 0.677" L x 0.661" W (17.20mm x 16.80mm).
In Stock: 172
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | - |
| Material - Core | - |
| Inductance | 2.7 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 17.5 A |
| Current - Saturation (Isat) | 15.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.56mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.677" L x 0.661" W (17.20mm x 16.80mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
Submit your RFQ for ETQ-PAF2R7HFA and get a quote within 24 hours.
