Panasonic Electronic Components
FIXED IND 4.1UH 7.9A 8.64MOHM SM

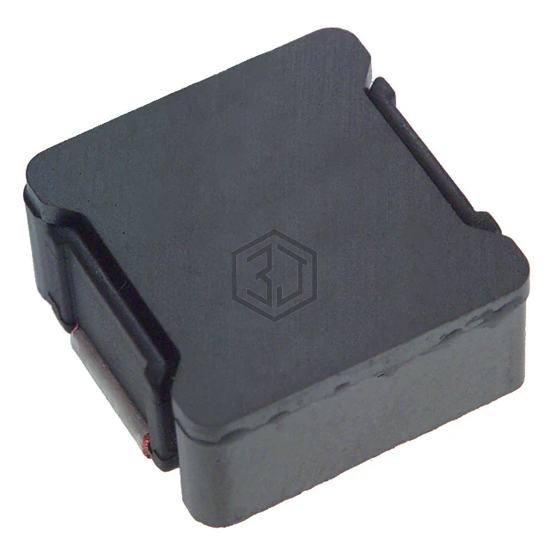

ETQ-P6F4R1LFA is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 4.1UH 7.9A 8.64MOHM SM. Key specifications: mounting type Surface Mount, package / case 2-SMD, J-Lead, current rating (amps) 7.9 A, size / dimension 0.492" L x 0.492" W (12.50mm x 12.50mm).
In Stock: 3,626
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 4.1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 7.9 A |
| Current - Saturation (Isat) | 10.8A |
| Shielding | Shielded |
| DC Resistance (DCR) | 8.64mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.224" (5.70mm) |
Submit your RFQ for ETQ-P6F4R1LFA and get a quote within 24 hours.
