Panasonic Electronic Components

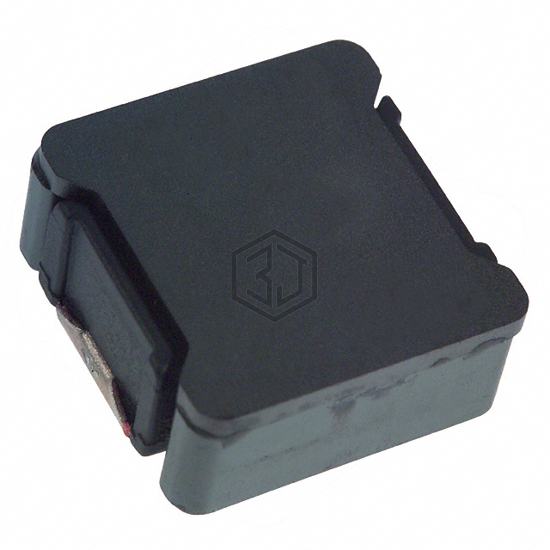

FIXED IND 3.5UH 9.3A 6.48MOHM SM
ETQ-P6F3R5SFA is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 3.5UH 9.3A 6.48MOHM SM. Key specifications: mounting type Surface Mount, package / case 2-SMD, J-Lead, current rating (amps) 9.3 A, size / dimension 0.492" L x 0.492" W (12.50mm x 12.50mm).
In Stock: 136
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 3.5 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 9.3 A |
| Current - Saturation (Isat) | 9.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 6.48mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.224" (5.70mm) |
Submit your RFQ for ETQ-P6F3R5SFA and get a quote within 24 hours.
