Panasonic Electronic Components
FIXED IND 22UH 3.7A 102MOHM SMD

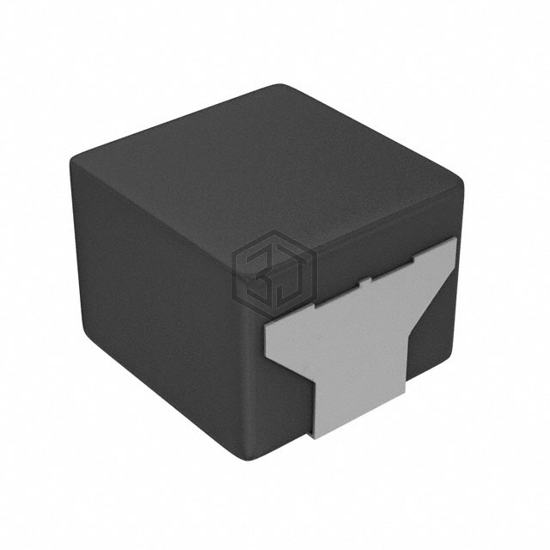

ETQ-P5M220YFM is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 22UH 3.7A 102MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case 2-SMD, J-Lead, current rating (amps) 3.7 A.
In Stock: 2,890
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal Composite |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.7 A |
| Current - Saturation (Isat) | 5.8A |
| Shielding | Shielded |
| DC Resistance (DCR) | 102mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.295" L x 0.276" W (7.50mm x 7.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
Submit your RFQ for ETQ-P5M220YFM and get a quote within 24 hours.
