Panasonic Electronic Components

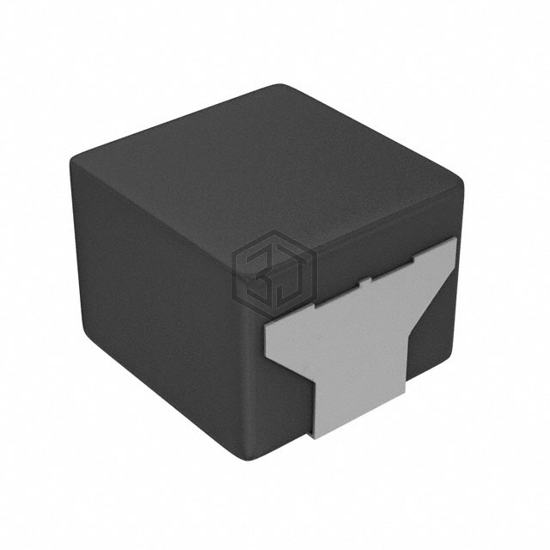

FIXED IND 10UH 5.7A 41.3MOHM SMD
ETQ-P5M100YFM is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 10UH 5.7A 41.3MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case 2-SMD, J-Lead, current rating (amps) 5.7 A.
In Stock: 16,577
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal Composite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5.7 A |
| Current - Saturation (Isat) | 10.6A |
| Shielding | Shielded |
| DC Resistance (DCR) | 41.3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.295" L x 0.276" W (7.50mm x 7.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
Submit your RFQ for ETQ-P5M100YFM and get a quote within 24 hours.
