Panasonic Electronic Components
FIXED IND 190NH 28A 0.7 MOHM SMD

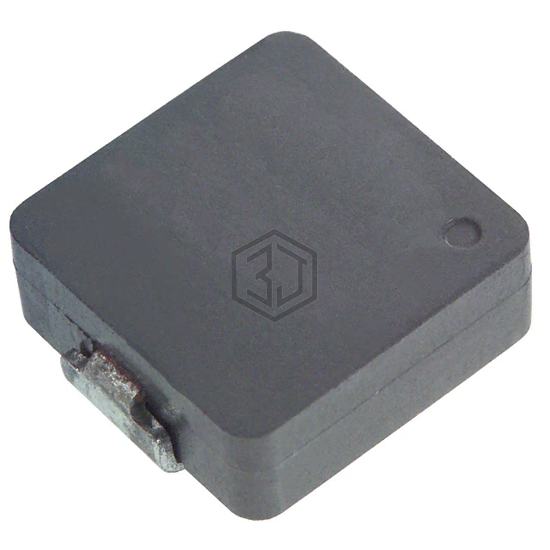

ETQ-P4LR19WFC is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 190NH 28A 0.7 MOHM SMD. Key specifications: mounting type Surface Mount, package / case 2-SMD, J-Lead, current rating (amps) 28 A, size / dimension 0.453" L x 0.394" W (11.50mm x 10.00mm).
In Stock: 3,992
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal Composite |
| Inductance | 190 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 28 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.7mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.453" L x 0.394" W (11.50mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for ETQ-P4LR19WFC and get a quote within 24 hours.
