Panasonic Electronic Components
FIXED IND 680NH 17A 5.5 MOHM SMD

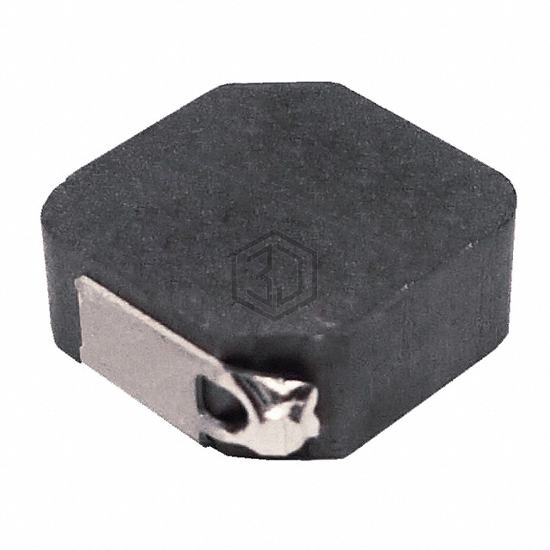

ETQ-P3WR68WFN is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 680NH 17A 5.5 MOHM SMD. Key specifications: mounting type Surface Mount, package / case 2-SMD, J-Lead, current rating (amps) 17 A, size / dimension 0.276" L x 0.260" W (7.00mm x 6.60mm).
In Stock: 821
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | - |
| Material - Core | Metal Composite |
| Inductance | 680 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 17 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 5.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.276" L x 0.260" W (7.00mm x 6.60mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for ETQ-P3WR68WFN and get a quote within 24 hours.
