Panasonic Electronic Components
FIXED IND 240NH 22A 1.12MOHM SMD

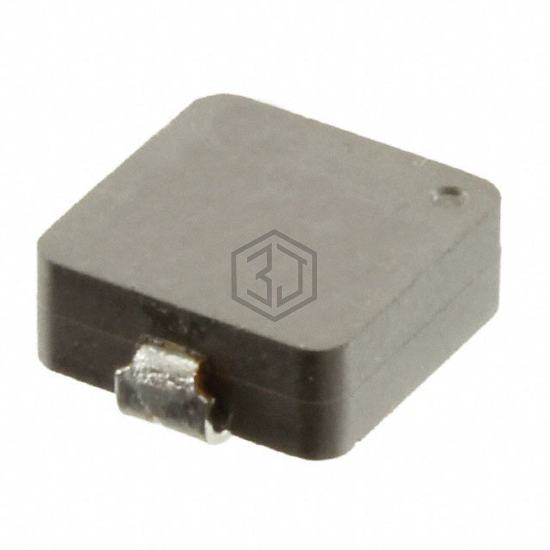

ETQ-P3LR24CFM is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 240NH 22A 1.12MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case 2-SMD, J-Lead, current rating (amps) 22 A.
In Stock: 2,248
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal Composite |
| Inductance | 240 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 22 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.12mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.343" L x 0.276" W (8.70mm x 7.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for ETQ-P3LR24CFM and get a quote within 24 hours.
