Panasonic Electronic Components
FIXED IND 2.61UH 12A 4.98 MOHM

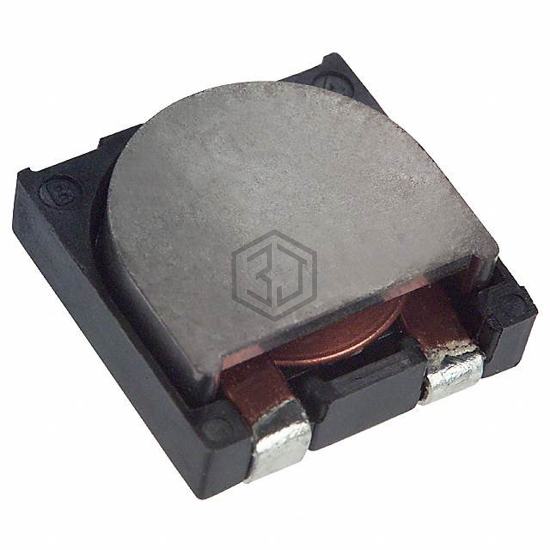

ETQ-P2H2R6BFA is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 2.61UH 12A 4.98 MOHM. Key specifications: mounting type Surface Mount, package / case Nonstandard, 4 Lead, current rating (amps) 12 A, size / dimension 0.512" L x 0.508" W (13.00mm x 12.90mm).
In Stock: 797
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 2.61 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 12 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 4.98mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, 4 Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.512" L x 0.508" W (13.00mm x 12.90mm) |
| Height - Seated (Max) | 0.193" (4.90mm) |
Submit your RFQ for ETQ-P2H2R6BFA and get a quote within 24 hours.
