Panasonic Electronic Components
RES 56 OHM 5% 1W 2512 SMD

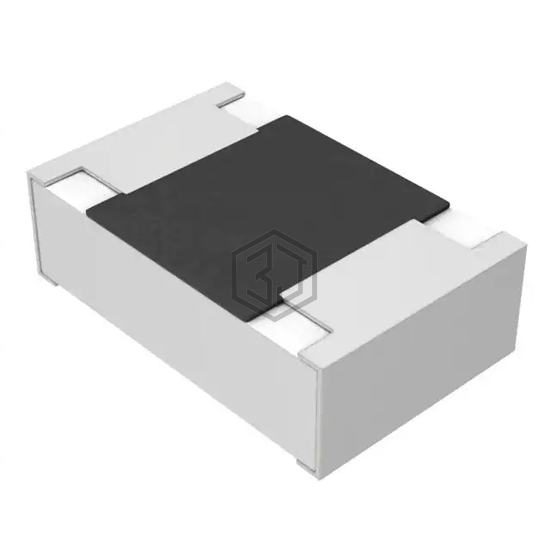

ERJ-U1TJ560U is a Chip Resistor - Surface Mount manufactured by Panasonic Electronic Components. RES 56 OHM 5% 1W 2512 SMD. Key specifications: operating temperature -55°C ~ 155°C, package / case 2512 (6432 Metric), size / dimension 0.252" L x 0.126" W (6.40mm x 3.20mm), ratings AEC-Q200.
In Stock: 7,019
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 56 Ohms |
| Tolerance | ±5% |
| Power (Watts) | 1W |
| Composition | Thick Film |
| Features | Anti-Sulfur, Automotive AEC-Q200 |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 2512 (6432 Metric) |
| Supplier Device Package | 2512 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.252" L x 0.126" W (6.40mm x 3.20mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CR2512-JW-560ELF | Bourns Inc. | RES SMD 56 OHM 5% 1W 2512 | 100% | View |
| RCP2512B56R0GS6 | Vishay Dale | RES SMD 56 OHM 2% 3.5W 2512 | 69% | View |
| RCP0603W56R0JWB | Vishay Dale | RES SMD 56 OHM 5% 1.5W 0603 | 68% | View |
| RMCF1210FT56R0 | Stackpole Electronics Inc | RES 56 OHM 1% 1/2W 1210 | 62% | View |
| RS73F2BTTD56R0D | KOA Speer Electronics, Inc. | RES 56 OHM 0.5% 1/3W 1206 | 62% | View |
| RPC32560JTP | Kamaya Inc. | RES 56 OHM 1/3W 5% 1206 | 62% | View |
Submit your RFQ for ERJ-U1TJ560U and get a quote within 24 hours.
