Panasonic Electronic Components
RES 56 OHM 5% 3/4W 1812 SMD

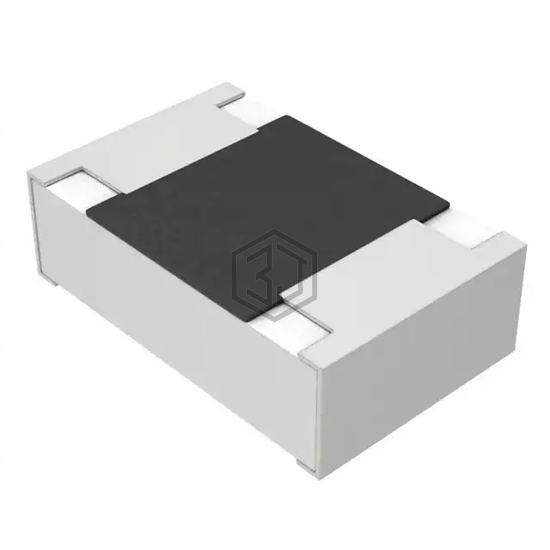

ERJ-U12J560U is a Chip Resistor - Surface Mount manufactured by Panasonic Electronic Components. RES 56 OHM 5% 3/4W 1812 SMD. Key specifications: operating temperature -55°C ~ 155°C, package / case 1812 (4532 Metric), size / dimension 0.177" L x 0.126" W (4.50mm x 3.20mm), ratings AEC-Q200.
In Stock: 9,846
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 56 Ohms |
| Tolerance | ±5% |
| Power (Watts) | 0.75W, 3/4W |
| Composition | Thick Film |
| Features | Anti-Sulfur, Automotive AEC-Q200 |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 1812 (4532 Metric) |
| Supplier Device Package | 1812 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SR2512KK-0756RL | YAGEO | RES 56 OHM 10% 1W 2512 | 84% | View |
| RMCW1020JT56R0 | Stackpole Electronics Inc | RES, 1020, 56 OHM, 5%, 1W | 82% | View |
| ERJ-S14J560U | Panasonic Electronic Components | RES SMD 56 OHM 5% 1/2W 1210 | 78% | View |
| RCP2512W56R0GEB | Vishay Dale | RES SMD 56 OHM 2% 3.5W 2512 | 66% | View |
| RCP1206W56R0JS6 | Vishay Dale | RES SMD 56 OHM 5% 2.4W 1206 | 65% | View |
| FRD1206J560 TS | Fosan | CHIP RESISTORS | 65% | View |
Submit your RFQ for ERJ-U12J560U and get a quote within 24 hours.
