Panasonic Electronic Components
RES 560K OHM 1% 1/8W 0805 SMD

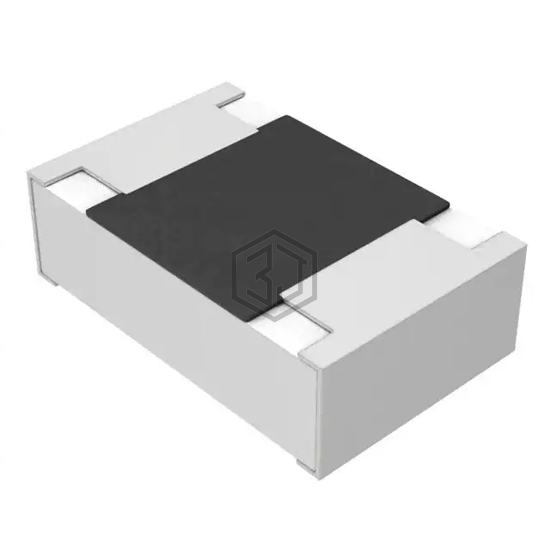

ERJ-U06F5603V is a Chip Resistor - Surface Mount manufactured by Panasonic Electronic Components. RES 560K OHM 1% 1/8W 0805 SMD. Key specifications: operating temperature -55°C ~ 155°C, package / case 0805 (2012 Metric), size / dimension 0.079" L x 0.049" W (2.00mm x 1.25mm), ratings AEC-Q200.
In Stock: 3,606
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 560 kOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.125W, 1/8W |
| Composition | Thick Film |
| Features | Anti-Sulfur, Automotive AEC-Q200 |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| FRH0805D5603TS | Fosan | CHIP RESISTORS | 100% | View |
| FRD0805J564 TS | Fosan | CHIP RESISTORS | 100% | View |
| RC1608F564CS | Samsung Electro-Mechanics | RES SMD 560K OHM 1% 1/10W 0603 | 87% | View |
| RK73G1JTTD5603D | KOA Speer Electronics, Inc. | RES 560K OHM 0.5% 1/10W 0603 | 87% | View |
| SR1-0603-456 | NTE Electronics, Inc | RES 560K OHM 5% 1/16W 0603 | 67% | View |
| CRGH1206J560K | TE Connectivity Passive Product | RES SMD 560K OHM 5% 1/2W 1206 | 65% | View |
Submit your RFQ for ERJ-U06F5603V and get a quote within 24 hours.
