Panasonic Electronic Components
RES SMD 536K OHM 1% 1/2W 0805

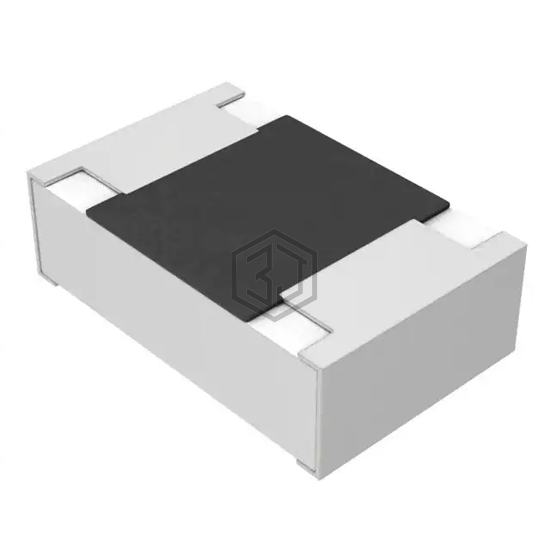

ERJ-P6WF5363V is a Chip Resistor - Surface Mount manufactured by Panasonic Electronic Components. RES SMD 536K OHM 1% 1/2W 0805. Key specifications: operating temperature -55°C ~ 155°C, package / case 0805 (2012 Metric), size / dimension 0.079" L x 0.049" W (2.00mm x 1.25mm), ratings AEC-Q200.
In Stock: 5,976
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Resistance | 536 kOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.5W, 1/2W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Pulse Withstanding |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.030" (0.75mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
ERJ-P6WF5363V is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ERJ-P14D5363U | Panasonic Electronic Components | RES SMD 536 KOHM 0.5% 1/2W 1210 | 96% | View |
| WK73R1ETTP5363F | KOA Speer Electronics, Inc. | RES 536K OHM 1% 1/3W 0402 | 79% | View |
| RC0603FR-07536KL | YAGEO | RES 536K OHM 1% 1/10W 0603 | 66% | View |
| SG73S1JTTD5363D | KOA Speer Electronics, Inc. | RES 536K OHM 0.5% 1/5W 0603 | 66% | View |
| RK73G2BTTD5363C | KOA Speer Electronics, Inc. | RESISTOR THICK FILM 1206 | 65% | View |
| ERJ-U08F5363V | Panasonic Electronic Components | RES 536K OHM 1% 1/8W 1206 SMD | 65% | View |
