Panasonic Electronic Components
RES SMD 158 OHM 1% 1/2W 0805

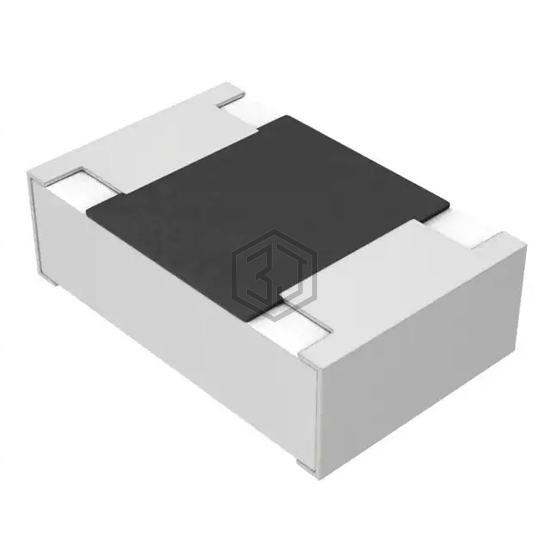

ERJ-P6WF1580V is a Chip Resistor - Surface Mount manufactured by Panasonic Electronic Components. RES SMD 158 OHM 1% 1/2W 0805. Key specifications: operating temperature -55°C ~ 155°C, package / case 0805 (2012 Metric), size / dimension 0.079" L x 0.049" W (2.00mm x 1.25mm), ratings AEC-Q200.
In Stock: 2,126
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Resistance | 158 Ohms |
| Tolerance | ±1% |
| Power (Watts) | 0.5W, 1/2W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Pulse Withstanding |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.030" (0.75mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
ERJ-P6WF1580V is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CRCW1210158RFKTA | Vishay Dale | RES SMD 158 OHM 1% 1/2W 1210 | 96% | View |
| ERJ-UP8D1580V | Panasonic Electronic Components | 1206 ANTI-SULFUR 0.66W, 0.5%, 15 | 83% | View |
| CRGH0805F158R | TE Connectivity Passive Product | RES SMD 158 OHM 1% 1/3W 0805 | 82% | View |
| ERJ-PA3D1580V | Panasonic Electronic Components | RES SMD 158 OHM 0.5% 1/3W 0603 | 79% | View |
| ERJ-S1DD1580U | Panasonic Electronic Components | 2010 ANTI-SULFUR RES. , 0.5%, 15 | 73% | View |
| RMCS2010FT158R | Stackpole Electronics Inc | RES, AS, 2010, 158 OHM, 1%, 0.75 | 73% | View |
Submit your RFQ for ERJ-P6WF1580V and get a quote within 24 hours.
