Panasonic Electronic Components

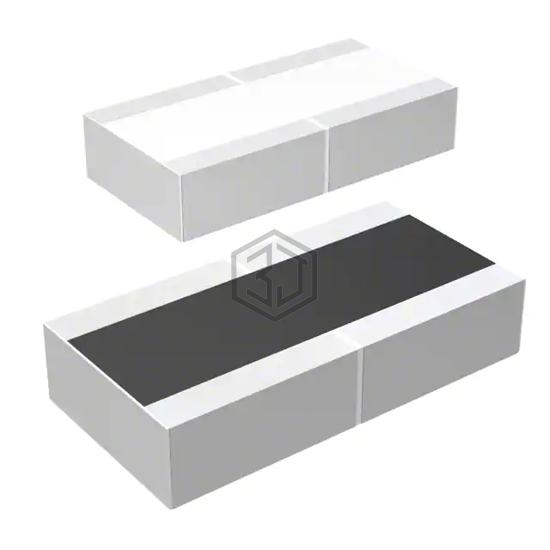

RES 0.056 OHM 1W 1206 WIDE
ERJ-B2CJR056V is a Chip Resistor - Surface Mount manufactured by Panasonic Electronic Components. RES 0.056 OHM 1W 1206 WIDE. Key specifications: operating temperature -55°C ~ 155°C, package / case Wide 1206 (3216 Metric), 0612, size / dimension 0.063" L x 0.126" W (1.60mm x 3.20mm), ratings AEC-Q200.
In Stock: 7,048
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 56 mOhms |
| Tolerance | ±5% |
| Power (Watts) | 1W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Current Sense |
| Temperature Coefficient | 0/ +150ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | Wide 1206 (3216 Metric), 0612 |
| Supplier Device Package | 0612 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.063" L x 0.126" W (1.60mm x 3.20mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| WU732BTTD56L0F | KOA Speer Electronics, Inc. | RESISTOR WIDE TERMINAL THICKFILM | 100% | View |
| ERJ-8BWJR056V | Panasonic Electronic Components | RES 0.056 OHM 5% 1W 1206 | 94% | View |
| CSR0603FT56L0 | Stackpole Electronics Inc | RES 0.056 OHM 1% 1/8W 0603 | 69% | View |
| PT0603FR-7T0R056L | YAGEO | RES 0.056 OHM 1% 1/3W 0603 | 69% | View |
| CR-03FL7---56M | Viking Tech | RES 56M OHM 1% 1/10W 0603 | 69% | View |
| ERJ-B3CJR056V | Panasonic Electronic Components | RES 0.056 OHM 1/2W 0805 WIDE | 67% | View |
Submit your RFQ for ERJ-B2CJR056V and get a quote within 24 hours.
