Panasonic Electronic Components
RES 0.024 OHM 1W 1206 WIDE

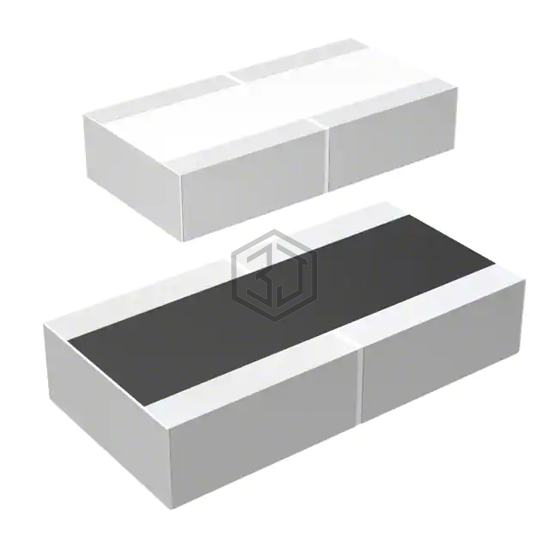

ERJ-B2CJR024V is a Chip Resistor - Surface Mount manufactured by Panasonic Electronic Components. RES 0.024 OHM 1W 1206 WIDE. Key specifications: operating temperature -55°C ~ 155°C, package / case Wide 1206 (3216 Metric), 0612, size / dimension 0.063" L x 0.126" W (1.60mm x 3.20mm), ratings AEC-Q200.
In Stock: 7,440
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 24 mOhms |
| Tolerance | ±5% |
| Power (Watts) | 1W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Current Sense |
| Temperature Coefficient | 0/ +200ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | Wide 1206 (3216 Metric), 0612 |
| Supplier Device Package | 0612 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.063" L x 0.126" W (1.60mm x 3.20mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CSRN2010JT24L0 | Stackpole Electronics Inc | RES 0.024 OHM 5% 1W 2010 | 89% | View |
| CSRN2010FK24L0 | Stackpole Electronics Inc | RES 0.024 OHM 1% 1W 2010 | 89% | View |
| WK73S2BTTD24LJ | KOA Speer Electronics, Inc. | RES 24M OHM 5% 3/4W 1206 | 87% | View |
| CSR0603JT24L0 | Stackpole Electronics Inc | RES 0.024 OHM 5% 1/8W 0603 | 69% | View |
| RU2012FR024CS | Samsung Electro-Mechanics | RES 0.024 OHM 1% 1/3W 0805 | 67% | View |
| CSR0805JK24L0 | Stackpole Electronics Inc | RES 0.024 OHM 5% 1/4W 0805 | 67% | View |
Submit your RFQ for ERJ-B2CJR024V and get a quote within 24 hours.
