Panasonic Electronic Components
RES SMD 5.6 OHM 1W 1206 WIDE

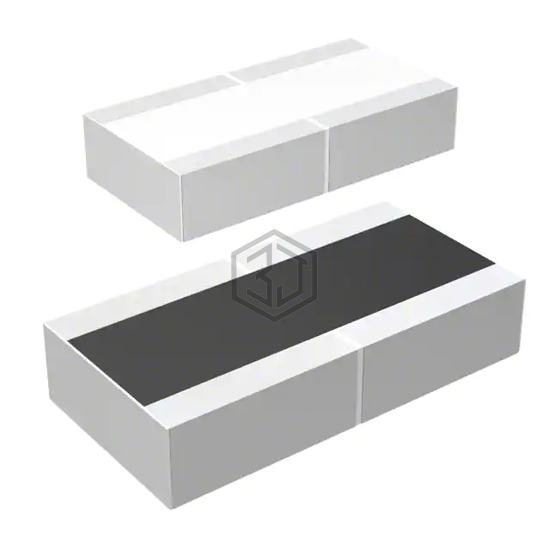

ERJ-B2BJ5R6V is a Chip Resistor - Surface Mount manufactured by Panasonic Electronic Components. RES SMD 5.6 OHM 1W 1206 WIDE. Key specifications: operating temperature -55°C ~ 155°C, package / case Wide 1206 (3216 Metric), 0612, size / dimension 0.063" L x 0.126" W (1.60mm x 3.20mm), ratings AEC-Q200.
In Stock: 6,146
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 5.6 Ohms |
| Tolerance | ±5% |
| Power (Watts) | 1W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Current Sense |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | Wide 1206 (3216 Metric), 0612 |
| Supplier Device Package | 0612 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.063" L x 0.126" W (1.60mm x 3.20mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RCL06125R60FKEA | Vishay Dale | RES SMD 5.6 OHM 3/4W 1206 WIDE | 87% | View |
| ERJ-U03J5R6V | Panasonic Electronic Components | RES 5.6 OHM 5% 1/10W 0603 SMD | 69% | View |
| RK73B1JRTTD5R6J | KOA Speer Electronics, Inc. | RES 5.6 OHM 5% 1/8W 0603 | 69% | View |
| CRCW06035R60JNTA | Vishay Dale | RES SMD 5.6 OHM 5% 1/10W 0603 | 69% | View |
| ERJ-6RQJ5R6V | Panasonic Electronic Components | RES SMD 5.6 OHM 5% 1/8W 0805 | 67% | View |
| RCS2012F5R6CS | Samsung Electro-Mechanics | RES 5.6 OHM 1% 1/8W 0805 | 67% | View |
Submit your RFQ for ERJ-B2BJ5R6V and get a quote within 24 hours.
