Panasonic Electronic Components
RES 0.56 OHM 1.33W 2512 WIDE

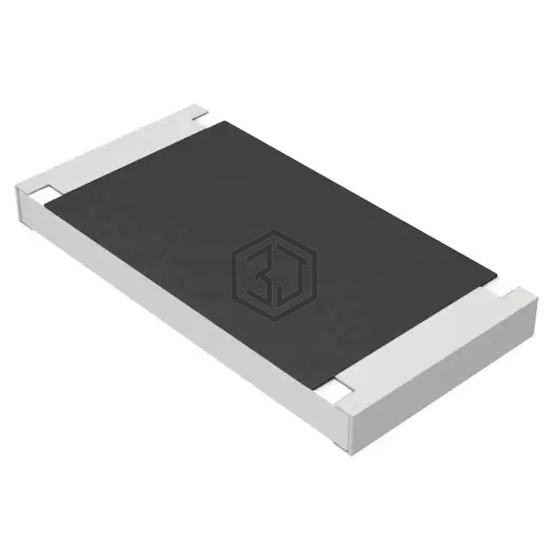

ERJ-A1BJR56U is a Chip Resistor - Surface Mount manufactured by Panasonic Electronic Components. RES 0.56 OHM 1.33W 2512 WIDE. Key specifications: operating temperature -55°C ~ 155°C, package / case Wide 2512 (6432 Metric), 1225 Convex, size / dimension 0.126" L x 0.252" W (3.20mm x 6.40mm), ratings AEC-Q200.
In Stock: 2,058
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 560 mOhms |
| Tolerance | ±5% |
| Power (Watts) | 1.33W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Current Sense |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | Wide 2512 (6432 Metric), 1225 Convex |
| Supplier Device Package | 2512 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.126" L x 0.252" W (3.20mm x 6.40mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PT2010FK-7W0R56L | YAGEO | RES 0.56 OHM 1% 1W 2010 | 85% | View |
| RHC2512FTR560 | Stackpole Electronics Inc | RES, 2512, 0.56 OHM, 1%, 1W | 82% | View |
| RCWE1210R560FKEA | Vishay Dale | RES 0.56 OHM 1% 1W 1210 | 80% | View |
| RCWE1020R560JKEA | Vishay Dale | RES 0.56 OHM 2W 2010 WIDE | 73% | View |
| RL2010FK-070R56L | YAGEO | RES 0.56 OHM 1% 3/4W 2010 | 72% | View |
| FRL1812JR560TS | Fosan | CHIP RESISTORS | 71% | View |
Submit your RFQ for ERJ-A1BJR56U and get a quote within 24 hours.
