Panasonic Electronic Components
RES SMD 560 OHM 1.33W 2512 WIDE

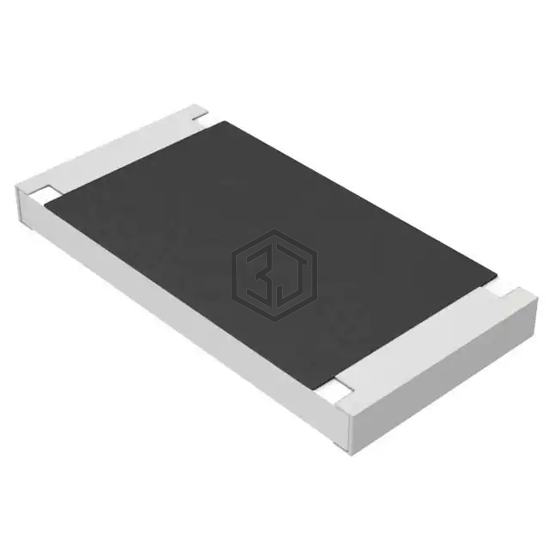

ERJ-A1AJ561U is a Chip Resistor - Surface Mount manufactured by Panasonic Electronic Components. RES SMD 560 OHM 1.33W 2512 WIDE. Key specifications: operating temperature -55°C ~ 155°C, package / case Wide 2512 (6432 Metric), 1225 Convex, size / dimension 0.126" L x 0.252" W (3.20mm x 6.40mm), ratings AEC-Q200.
In Stock: 3,865
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 560 Ohms |
| Tolerance | ±5% |
| Power (Watts) | 1.33W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Current Sense |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | Wide 2512 (6432 Metric), 1225 Convex |
| Supplier Device Package | 2512 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.126" L x 0.252" W (3.20mm x 6.40mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RCP0505W560RJS2 | Vishay Dale | RES SMD 560 OHM 5% 1.4W 0505 | 82% | View |
| RCP0603W560RGEB | Vishay Dale | RES SMD 560 OHM 2% 1.5W 0603 | 81% | View |
| RCP0603W560RJWB | Vishay Dale | RES SMD 560 OHM 5% 1.5W 0603 | 81% | View |
| ERJ-U1DJ561U | Panasonic Electronic Components | RES 560 OHM 5% 3/4W 2010 SMD | 72% | View |
| CRCW1206560RFKEAHP | Vishay Dale | RES SMD 560 OHM 1% 3/4W 1206 | 68% | View |
| RCP1206W560RGS6 | Vishay Dale | RES SMD 560 OHM 2% 2.4W 1206 | 67% | View |
Submit your RFQ for ERJ-A1AJ561U and get a quote within 24 hours.
