Panasonic Electronic Components
RES SMD 56 OHM 1.33W 2512 WIDE

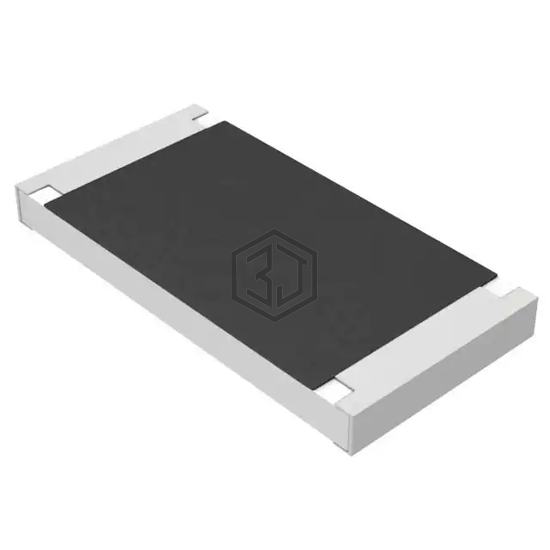

ERJ-A1AJ560U is a Chip Resistor - Surface Mount manufactured by Panasonic Electronic Components. RES SMD 56 OHM 1.33W 2512 WIDE. Key specifications: operating temperature -55°C ~ 155°C, package / case Wide 2512 (6432 Metric), 1225 Convex, size / dimension 0.126" L x 0.252" W (3.20mm x 6.40mm), ratings AEC-Q200.
In Stock: 8,512
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 56 Ohms |
| Tolerance | ±5% |
| Power (Watts) | 1.33W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Current Sense |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | Wide 2512 (6432 Metric), 1225 Convex |
| Supplier Device Package | 2512 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.126" L x 0.252" W (3.20mm x 6.40mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ERJ-S1TJ560U | Panasonic Electronic Components | RES SMD 56 OHM 5% 1W 2512 | 87% | View |
| RCP0505W56R0JEA | Vishay Dale | RES SMD 56 OHM 5% 1.4W 0505 | 82% | View |
| RCP0505B56R0JS3 | Vishay Dale | RES SMD 56 OHM 5% 1.4W 0505 | 82% | View |
| SWR10JTEQ0560 | Viking Tech | RES 56 OHM 5% 3/4W 2010 | 72% | View |
| RCP2512B56R0GWB | Vishay Dale | RES SMD 56 OHM 2% 3.5W 2512 | 69% | View |
| PWR163S-25-56R0JE | Bourns Inc. | POWER RESISTOR 5% | 64% | View |
Submit your RFQ for ERJ-A1AJ560U and get a quote within 24 hours.
