Panasonic Electronic Components
RES SMD 56 OHM 1% 1W 2512

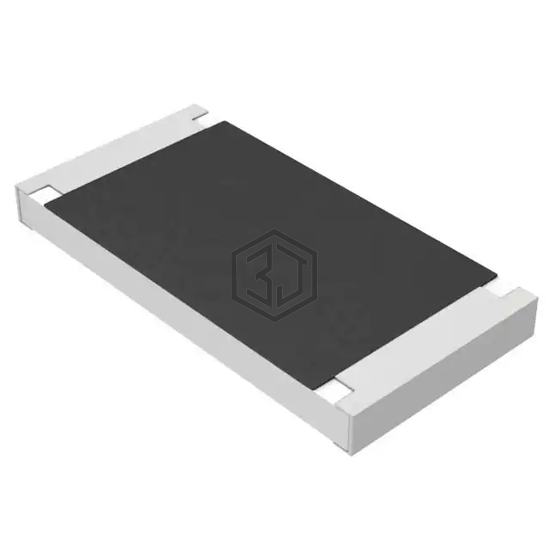

ERJ-1TNF56R0U is a Chip Resistor - Surface Mount manufactured by Panasonic Electronic Components. RES SMD 56 OHM 1% 1W 2512. Key specifications: operating temperature -55°C ~ 155°C, package / case 2512 (6432 Metric), size / dimension 0.252" L x 0.126" W (6.40mm x 3.20mm), ratings AEC-Q200.
In Stock: 8,700
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Resistance | 56 Ohms |
| Tolerance | ±1% |
| Power (Watts) | 1W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200 |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 2512 (6432 Metric) |
| Supplier Device Package | 2512 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.252" L x 0.126" W (6.40mm x 3.20mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
ERJ-1TNF56R0U is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RPC2512JT56R0 | Stackpole Electronics Inc | RES 56 OHM 5% 1.5W 2512 | 82% | View |
| SWR12JTEA0560 | Viking Tech | RES 56 OHM 5% 1.5W 2512 | 82% | View |
| CRCW121056R0FKTA | Vishay Dale | RES SMD 56 OHM 1% 1/2W 1210 | 62% | View |
| SG73P2ETTD56R0F | KOA Speer Electronics, Inc. | RES 56 OHM 1% 1/2W 1210 | 62% | View |
| RPC1206JT56R0 | Stackpole Electronics Inc | RES 56 OHM 5% 1/3W 1206 | 62% | View |
| RMCS1210JT56R0 | Stackpole Electronics Inc | RES, AS, 1210, 56 OHM, 5%, 0.33W | 62% | View |
Submit your RFQ for ERJ-1TNF56R0U and get a quote within 24 hours.
