Panasonic Electronic Components
RES SMD 536 OHM 1% 1W 2512

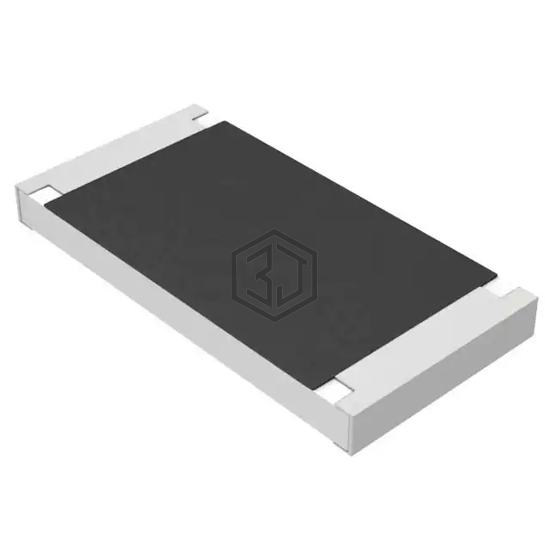

ERJ-1TNF5360U is a Chip Resistor - Surface Mount manufactured by Panasonic Electronic Components. RES SMD 536 OHM 1% 1W 2512. Key specifications: operating temperature -55°C ~ 155°C, package / case 2512 (6432 Metric), size / dimension 0.252" L x 0.126" W (6.40mm x 3.20mm), ratings AEC-Q200.
In Stock: 4,213
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Resistance | 536 Ohms |
| Tolerance | ±1% |
| Power (Watts) | 1W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200 |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 2512 (6432 Metric) |
| Supplier Device Package | 2512 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.252" L x 0.126" W (6.40mm x 3.20mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
ERJ-1TNF5360U is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AA1218FK-07536RL | YAGEO | RES SMD 536 OHM 1W 1812 WIDE | 93% | View |
| CR2010-2W-5360FT | Venkel | RES 536 OHM 1% 1/2W 2010 | 67% | View |
| CRCW1210536RFKTA | Vishay Dale | RES SMD 536 OHM 1% 1/2W 1210 | 62% | View |
| ERJ-S08F5360V | Panasonic Electronic Components | RES SMD 536 OHM 1% 1/4W 1206 | 62% | View |
| RMCP1210FT536R | Stackpole Electronics Inc | RES, 1210, 536 OHM, 1%, 0.66W | 62% | View |
| ERJ-P14D5360U | Panasonic Electronic Components | RES SMD 536 OHM 0.5% 1/2W 1210 | 62% | View |
Submit your RFQ for ERJ-1TNF5360U and get a quote within 24 hours.
