Panasonic Electronic Components
RES SMD 22 OHM 1% 1W 2512

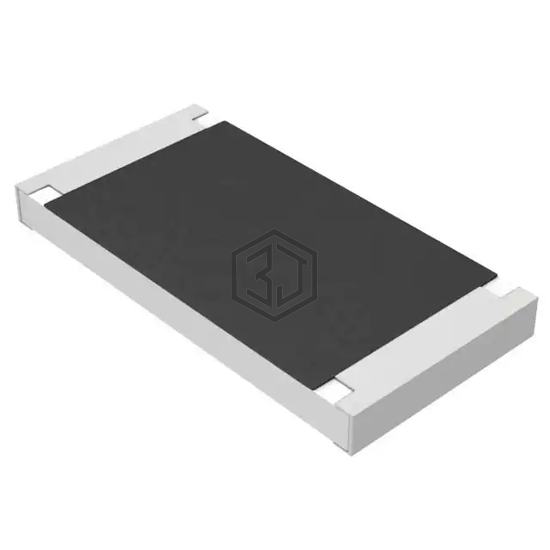

ERJ-1TNF22R0U is a Chip Resistor - Surface Mount manufactured by Panasonic Electronic Components. RES SMD 22 OHM 1% 1W 2512. Key specifications: operating temperature -55°C ~ 155°C, package / case 2512 (6432 Metric), size / dimension 0.252" L x 0.126" W (6.40mm x 3.20mm), ratings AEC-Q200.
In Stock: 9,899
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Resistance | 22 Ohms |
| Tolerance | ±1% |
| Power (Watts) | 1W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200 |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 2512 (6432 Metric) |
| Supplier Device Package | 2512 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.252" L x 0.126" W (6.40mm x 3.20mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
ERJ-1TNF22R0U is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CRGCQ2512J22R | TE Connectivity Passive Product | RES 22 OHM 5% 1W 2512 | 100% | View |
| SLR1TTE22R0F | KOA Speer Electronics, Inc. | SLR SMD-RESISTOR CURRENT SENSE | 100% | View |
| SR1218KK-0722RL | YAGEO | RES 22 OHM 10% 1W 1812 WIDE | 93% | View |
| AA2010FK-0722RL | YAGEO | RES SMD 22 OHM 1% 3/4W 2010 | 85% | View |
| RCP0505W22R0GS2 | Vishay Dale | RES SMD 22 OHM 2% 1.4W 0505 | 70% | View |
| RCP2512W22R0JS6 | Vishay Dale | RES SMD 22 OHM 5% 3.5W 2512 | 69% | View |
Submit your RFQ for ERJ-1TNF22R0U and get a quote within 24 hours.
