Panasonic Electronic Components

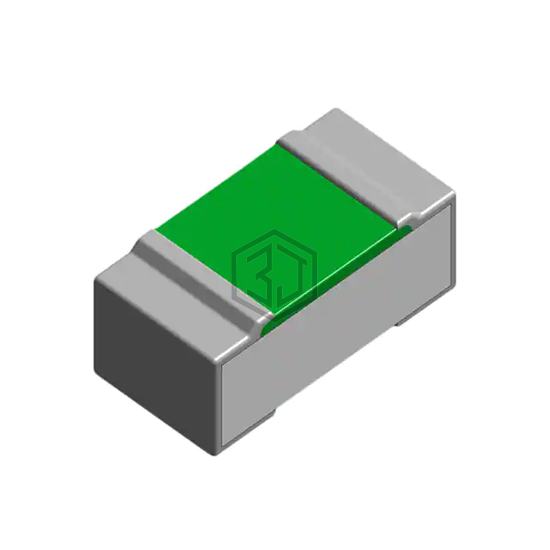

RES SMD 22.6 OHM 0.5% 1/16W 0402
ERA-2HHD22R6X is a Chip Resistor - Surface Mount manufactured by Panasonic Electronic Components. RES SMD 22.6 OHM 0.5% 1/16W 0402. Key specifications: operating temperature -55°C ~ 125°C, package / case 0402 (1005 Metric), size / dimension 0.039" L x 0.020" W (1.00mm x 0.50mm), power (watts) 0.063W, 1/16W.
In Stock: 6,043
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Resistance | 22.6 Ohms |
| Tolerance | ±0.5% |
| Power (Watts) | 0.063W, 1/16W |
| Composition | Thin Film |
| Features | - |
| Temperature Coefficient | ±50ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Ratings | - |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.016" (0.40mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
ERA-2HHD22R6X is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RT0402CRE0722R6L | YAGEO | RES SMD 22.6OHM 0.25% 1/16W 0402 | 100% | View |
| 9T04021A22R6BAHF3 | YAGEO | RES SMD 22.6 OHM 0.1% 1/16W 0402 | 100% | View |
| AT0603BRD0722R6L | YAGEO | RES SMD 22.6 OHM 0.1% 1/10W 0603 | 76% | View |
| M55342H06B22D6RWI | Vishay Dale Thin Film | RES SMD 22.6 OHM 1% 0.15W 0705 | 64% | View |
| MMB02070C2269FB200 | Vishay Beyschlag/Draloric/BC Components | RES SMD 22.6 OHM 1% 1W 0207 | 63% | View |
| RT0805CRB0722R6L | YAGEO | RES SMD 22.6 OHM 0.25% 1/8W 0805 | 63% | View |
Submit your RFQ for ERA-2HHD22R6X and get a quote within 24 hours.
