Panasonic Electronic Components
FIXED IND 4.7UH 950MA 200MOHM SM

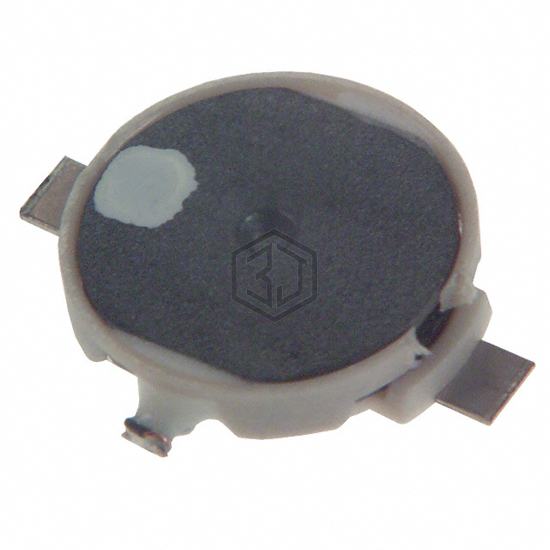

ELT-5KT4R7MB is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 4.7UH 950MA 200MOHM SM. Key specifications: mounting type Surface Mount, package / case Nonstandard, current rating (amps) 950 mA, size / dimension 0.228" L x 0.205" W (5.80mm x 5.20mm).
In Stock: 4,299
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 950 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 200mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.228" L x 0.205" W (5.80mm x 5.20mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
Submit your RFQ for ELT-5KT4R7MB and get a quote within 24 hours.
