Panasonic Electronic Components
FIXED IND 1.1MH 30MA 32 OHM SMD

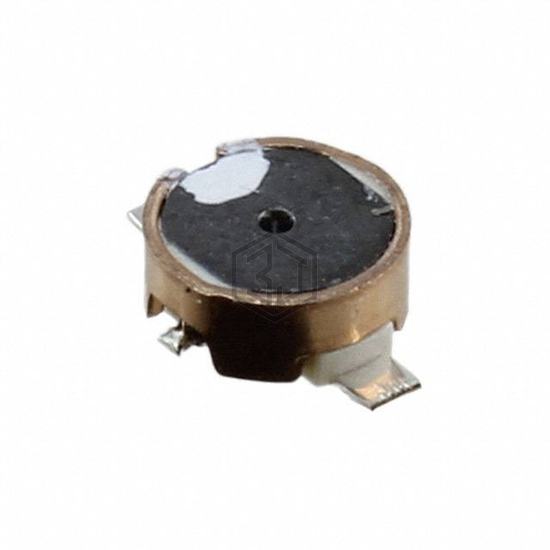

ELT-3KN163B is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 1.1MH 30MA 32 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 85°C, package / case Nonstandard, current rating (amps) 30 mA.
In Stock: 2,559
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1.1 mH |
| Tolerance | ±10% |
| Current Rating (Amps) | 30 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 32Ohm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -20°C ~ 85°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.130" L x 0.122" W (3.30mm x 3.10mm) |
| Height - Seated (Max) | 0.055" (1.40mm) |
Submit your RFQ for ELT-3KN163B and get a quote within 24 hours.
