Panasonic Electronic Components

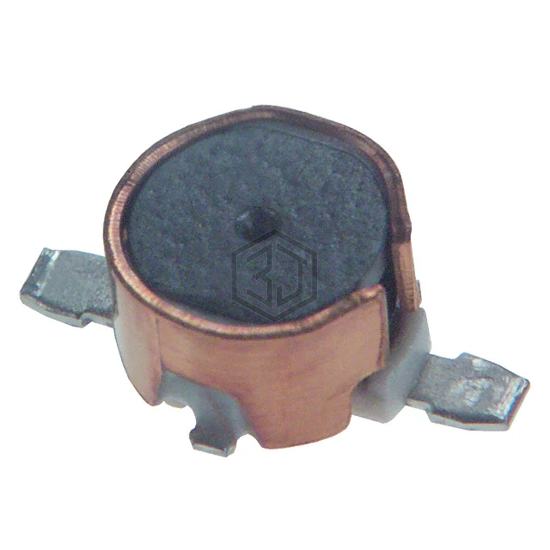

FIXED IND 560UH 45MA 15 OHM SMD
ELT-3KN128B is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 560UH 45MA 15 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 85°C, package / case Nonstandard, current rating (amps) 45 mA.
In Stock: 3,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 560 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 45 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 15Ohm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -20°C ~ 85°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.130" L x 0.130" W (3.30mm x 3.30mm) |
| Height - Seated (Max) | 0.087" (2.20mm) |
Submit your RFQ for ELT-3KN128B and get a quote within 24 hours.
