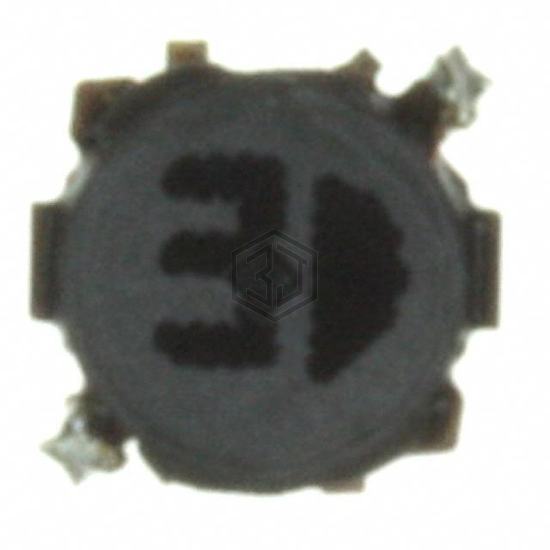

Panasonic Electronic Components
FIXED IND 3.3UH 820MA 210MOHM SM
ELL-VEG3R3N is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 3.3UH 820MA 210MOHM SM. Key specifications: mounting type Surface Mount, package / case Nonstandard, current rating (amps) 820 mA, size / dimension 0.118" L x 0.118" W (3.00mm x 3.00mm).
In Stock: 1,082
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 3.3 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 820 mA |
| Current - Saturation (Isat) | 1A |
| Shielding | Shielded |
| DC Resistance (DCR) | 210mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
Submit your RFQ for ELL-VEG3R3N and get a quote within 24 hours.
