Panasonic Electronic Components
FIXED IND 1UH 1.7A 49 MOHM SMD

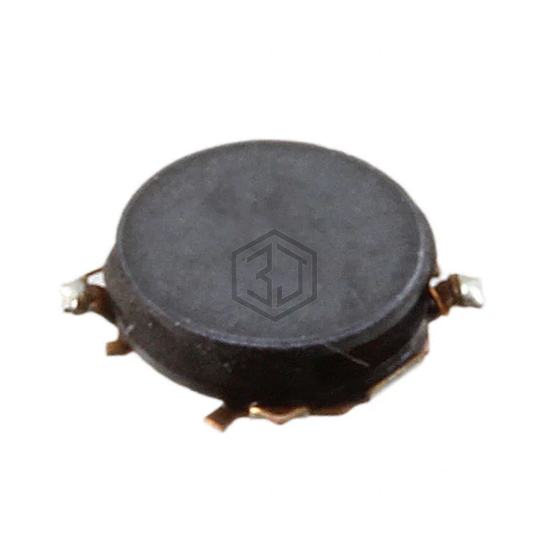

ELL-SFG1R0NA is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 1UH 1.7A 49 MOHM SMD. Key specifications: mounting type Surface Mount, package / case Nonstandard, current rating (amps) 1.7 A, size / dimension 0.157" L x 0.157" W (4.00mm x 4.00mm).
In Stock: 3,990
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.7 A |
| Current - Saturation (Isat) | 1.8A |
| Shielding | Shielded |
| DC Resistance (DCR) | 49mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
Submit your RFQ for ELL-SFG1R0NA and get a quote within 24 hours.
