Panasonic Electronic Components
FIXED IND 560UH 540MA 810MOHM SM

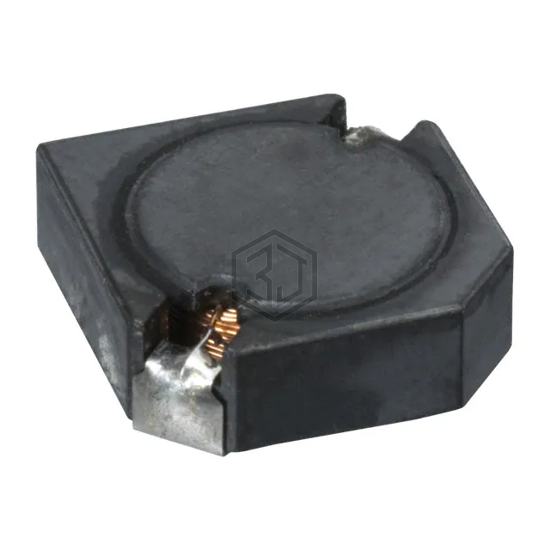

ELL-CTV561M is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 560UH 540MA 810MOHM SM. Key specifications: mounting type Surface Mount, package / case Nonstandard, current rating (amps) 540 mA, size / dimension 0.472" L x 0.472" W (12.00mm x 12.00mm).
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 560 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 540 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 810mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
Submit your RFQ for ELL-CTV561M and get a quote within 24 hours.
