Panasonic Electronic Components
FIXED IND 390UH 520MA 690MOHM SM

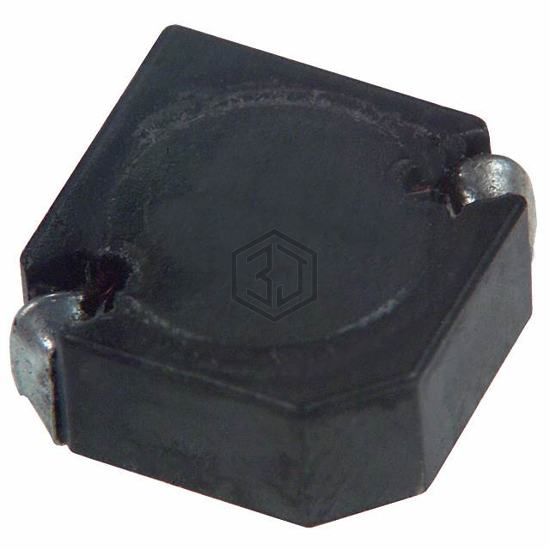

ELL-ATV391M is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 390UH 520MA 690MOHM SM. Key specifications: mounting type Surface Mount, package / case Nonstandard, current rating (amps) 520 mA, size / dimension 0.394" L x 0.394" W (10.00mm x 10.00mm).
In Stock: 1,500
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 390 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 520 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 690mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
Submit your RFQ for ELL-ATV391M and get a quote within 24 hours.
