Panasonic Electronic Components
FIXED IND 6.8UH 3.5A 18 MOHM SMD

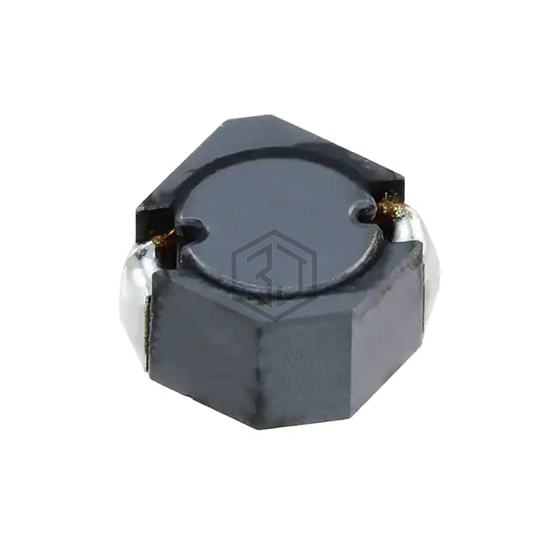

ELL-8TP6R8NB is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 6.8UH 3.5A 18 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case Nonstandard, Corner Terminals, current rating (amps) 3.5 A.
In Stock: 998
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 6.8 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 3.5 A |
| Current - Saturation (Isat) | 3.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 18mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, Corner Terminals |
| Supplier Device Package | - |
| Size / Dimension | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for ELL-8TP6R8NB and get a quote within 24 hours.
