Panasonic Electronic Components

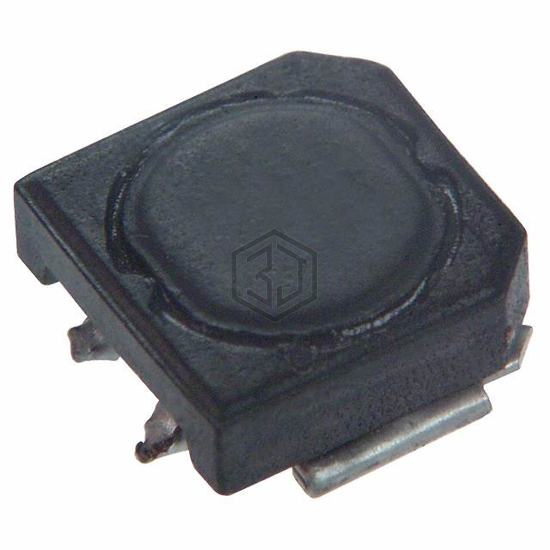

FIXED IND 7.5UH 1.25A 80MOHM SMD
ELL-6RH7R5M is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 7.5UH 1.25A 80MOHM SMD. Key specifications: mounting type Surface Mount, package / case Nonstandard, current rating (amps) 1.25 A, size / dimension 0.252" L x 0.236" W (6.40mm x 6.00mm).
In Stock: 587
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 7.5 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.25 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 80mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.252" L x 0.236" W (6.40mm x 6.00mm) |
| Height - Seated (Max) | 0.110" (2.80mm) |
Submit your RFQ for ELL-6RH7R5M and get a quote within 24 hours.
