Panasonic Electronic Components
FIXED IND 5.6UH 1.45A 49MOHM SMD

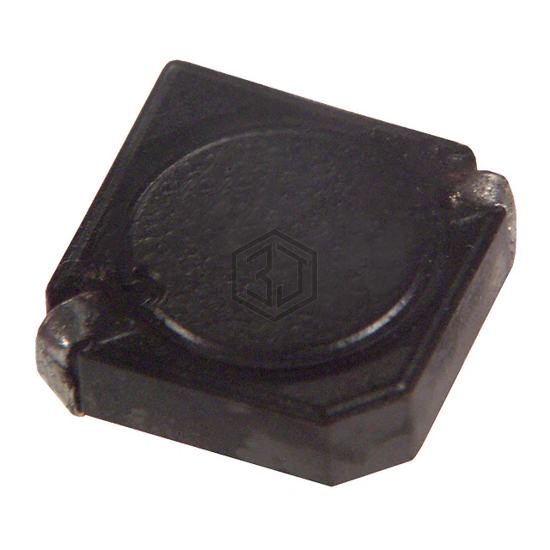

ELL-6PV5R6N is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 5.6UH 1.45A 49MOHM SMD. Key specifications: mounting type Surface Mount, package / case Nonstandard, current rating (amps) 1.45 A, size / dimension 0.236" L x 0.236" W (6.00mm x 6.00mm).
In Stock: 523
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 5.6 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 1.45 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 49mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for ELL-6PV5R6N and get a quote within 24 hours.
