Panasonic Electronic Components

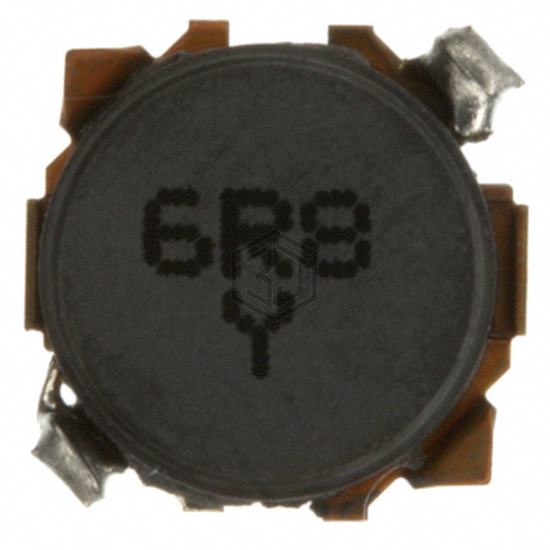

FIXED IND 6.8UH 1.3A 110MOHM SMD
ELL-6GG6R8M is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 6.8UH 1.3A 110MOHM SMD. Key specifications: mounting type Surface Mount, package / case Nonstandard, current rating (amps) 1.3 A, size / dimension 0.236" L x 0.236" W (6.00mm x 6.00mm).
In Stock: 1,697
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.3 A |
| Current - Saturation (Isat) | 1.15A |
| Shielding | Shielded |
| DC Resistance (DCR) | 110mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.063" (1.60mm) |
Submit your RFQ for ELL-6GG6R8M and get a quote within 24 hours.
