Panasonic Electronic Components
FIXED IND 33UH 510MA 610MOHM SMD

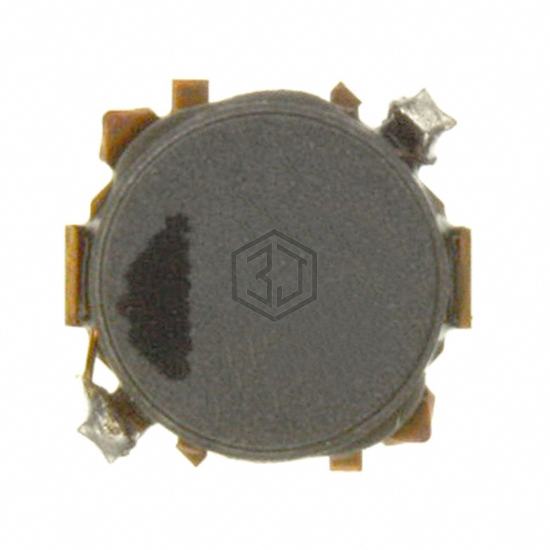

ELL-4LG330MA is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 33UH 510MA 610MOHM SMD. Key specifications: mounting type Surface Mount, package / case Nonstandard, current rating (amps) 510 mA, size / dimension 0.150" L x 0.150" W (3.80mm x 3.80mm).
In Stock: 3,583
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 33 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 510 mA |
| Current - Saturation (Isat) | 430mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 610mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.150" L x 0.150" W (3.80mm x 3.80mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
Submit your RFQ for ELL-4LG330MA and get a quote within 24 hours.
