Panasonic Electronic Components
FIXED IND 47UH 260MA 1.05OHM SMD

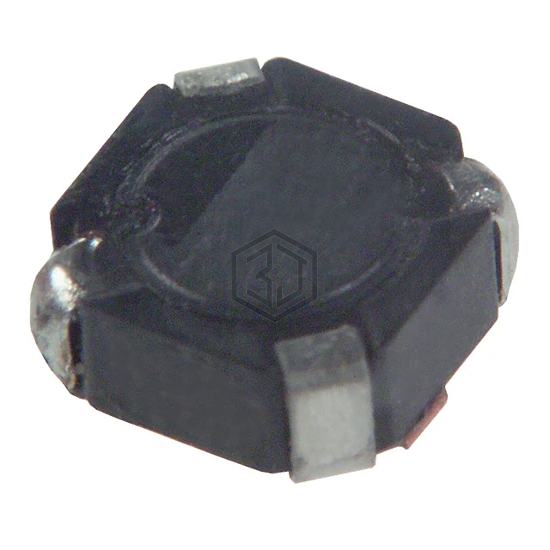

ELL-4GM470M is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 47UH 260MA 1.05OHM SMD. Key specifications: mounting type Surface Mount, package / case Nonstandard, current rating (amps) 260 mA, size / dimension 0.150" L x 0.150" W (3.80mm x 3.80mm).
In Stock: 1,954
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 260 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.05Ohm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.150" L x 0.150" W (3.80mm x 3.80mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
Submit your RFQ for ELL-4GM470M and get a quote within 24 hours.
