Panasonic Electronic Components

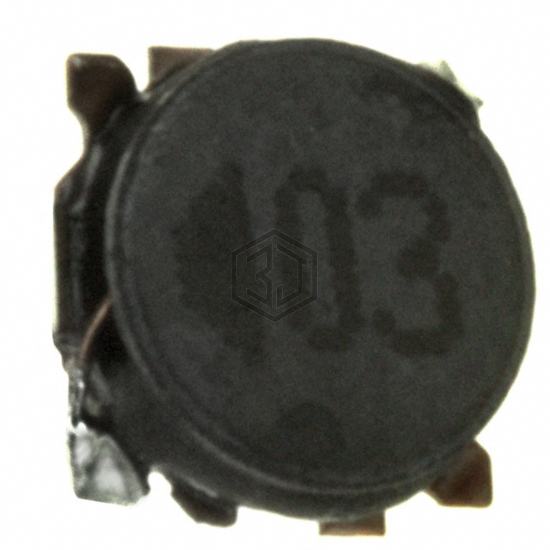

FIXED IND 6.8UH 930MA 200MOHM SM
ELL-4GG6R8N is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 6.8UH 930MA 200MOHM SM. Key specifications: mounting type Surface Mount, package / case Nonstandard, current rating (amps) 930 mA, size / dimension 0.150" L x 0.150" W (3.80mm x 3.80mm).
In Stock: 11,344
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 6.8 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 930 mA |
| Current - Saturation (Isat) | 1.05A |
| Shielding | Shielded |
| DC Resistance (DCR) | 200mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.150" L x 0.150" W (3.80mm x 3.80mm) |
| Height - Seated (Max) | 0.055" (1.40mm) |
Submit your RFQ for ELL-4GG6R8N and get a quote within 24 hours.
