Panasonic Electronic Components
FIXED IND 22NH 290MA 520MOHM SMD

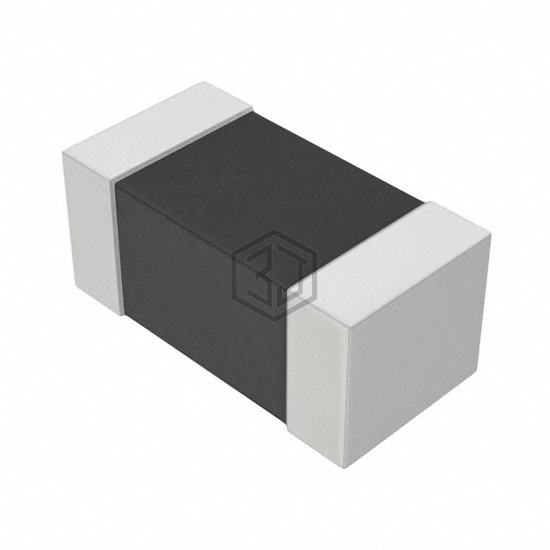

ELJ-QE22NGFA is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 22NH 290MA 520MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 0603 (1608 Metric), current rating (amps) 290 mA.
In Stock: 1,997
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Multilayer |
| Material - Core | Ceramic |
| Inductance | 22 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 290 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 520mOhm Max |
| Q @ Freq | 15 @ 100MHz |
| Frequency - Self Resonant | 3.7GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
Submit your RFQ for ELJ-QE22NGFA and get a quote within 24 hours.
