Panasonic Electronic Components
FIXED IND 1.5UH 435MA 550MOHM SM

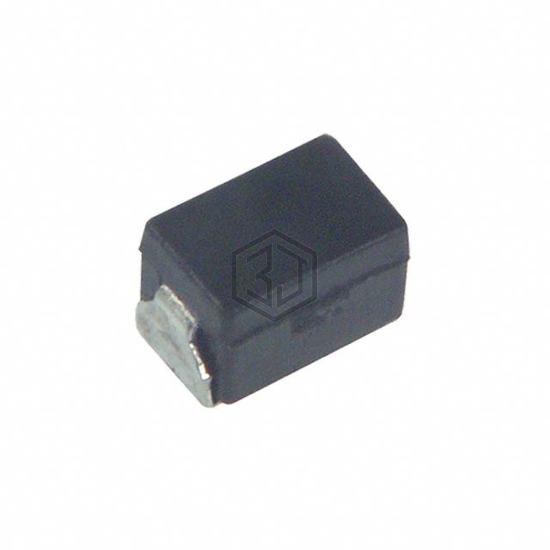

ELJ-PC1R5MF is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 1.5UH 435MA 550MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 85°C, package / case 1008 (2520 Metric), current rating (amps) 435 mA.
In Stock: 1,689
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 435 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 550mOhm Max |
| Q @ Freq | 10 @ 7.96MHz |
| Frequency - Self Resonant | 85MHz |
| Ratings | - |
| Operating Temperature | -20°C ~ 85°C |
| Inductance Frequency - Test | 7.96 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
Submit your RFQ for ELJ-PC1R5MF and get a quote within 24 hours.
