Panasonic Electronic Components
FIXED IND 68NH 400MA 250MOHM SMD

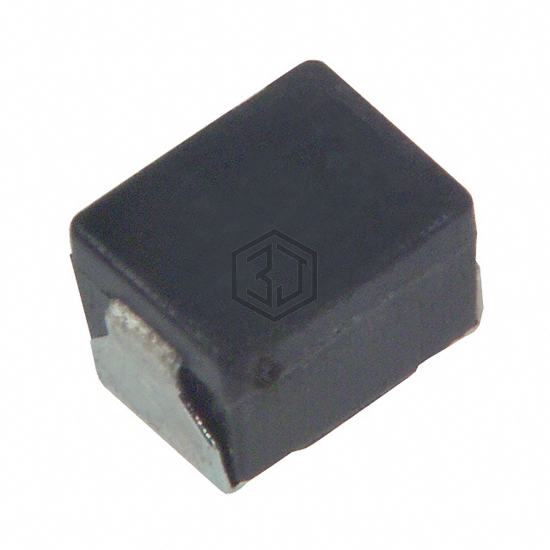

ELJ-NA68NMF is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 68NH 400MA 250MOHM SMD. Key specifications: mounting type Surface Mount, package / case 1210 (3225 Metric), current rating (amps) 400 mA, size / dimension 0.126" L x 0.098" W (3.20mm x 2.50mm).
In Stock: 20,608
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | Non-Magnetic |
| Inductance | 68 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 400 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 250mOhm Max |
| Q @ Freq | 10 @ 100MHz |
| Frequency - Self Resonant | 540MHz |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.094" (2.40mm) |
Submit your RFQ for ELJ-NA68NMF and get a quote within 24 hours.
