Panasonic Electronic Components
FIXED IND 1.8UH 110MA 3 OHM SMD

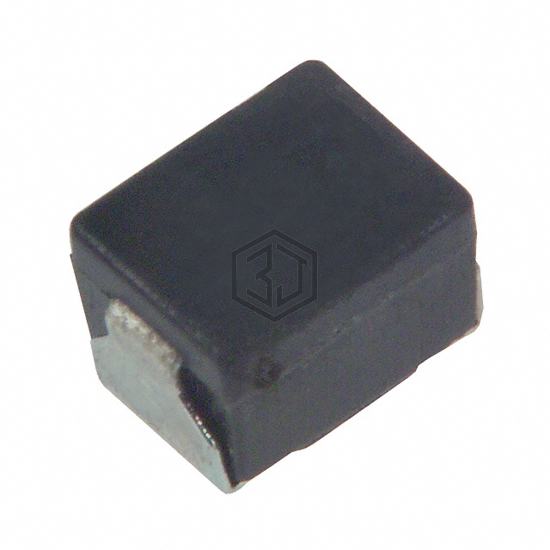

ELJ-NA1R8JF is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 1.8UH 110MA 3 OHM SMD. Key specifications: mounting type Surface Mount, package / case 1210 (3225 Metric), current rating (amps) 110 mA, size / dimension 0.126" L x 0.098" W (3.20mm x 2.50mm).
In Stock: 4,139
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | Non-Magnetic |
| Inductance | 1.8 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 110 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 3Ohm Max |
| Q @ Freq | 13 @ 7.96MHz |
| Frequency - Self Resonant | 85MHz |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.094" (2.40mm) |
