Panasonic Electronic Components

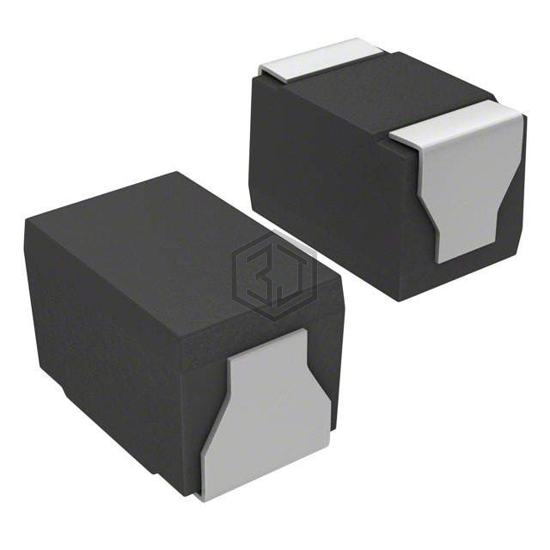

FIXED IND 4.7UH 350MA 750MOHM SM
ELJ-LC4R7MF is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 4.7UH 350MA 750MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 85°C, package / case 1008 (2520 Metric), current rating (amps) 350 mA.
In Stock: 685
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 350 mA |
| Current - Saturation (Isat) | 700mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 750mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -20°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
Submit your RFQ for ELJ-LC4R7MF and get a quote within 24 hours.
