Panasonic Electronic Components
FIXED IND 220NH 360MA 290MOHM SM

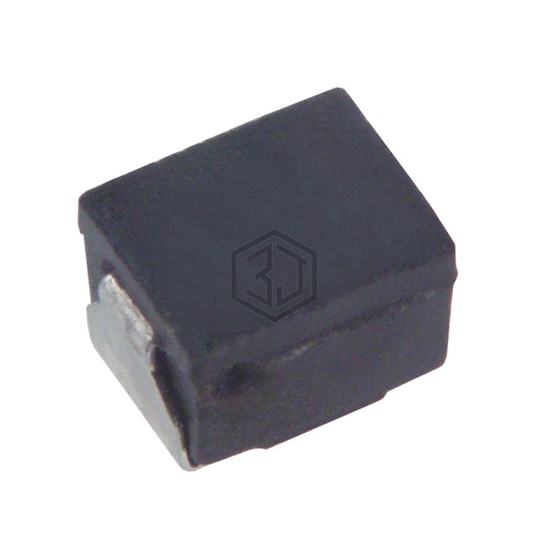

ELJ-FAR22KF2 is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 220NH 360MA 290MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 85°C, package / case 1210 (3225 Metric), current rating (amps) 360 mA.
In Stock: 177
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 220 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 360 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 290mOhm Max |
| Q @ Freq | 25 @ 25.2MHz |
| Frequency - Self Resonant | 230MHz |
| Ratings | - |
| Operating Temperature | -20°C ~ 85°C |
| Inductance Frequency - Test | 25.2 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.094" (2.40mm) |
Submit your RFQ for ELJ-FAR22KF2 and get a quote within 24 hours.
