Panasonic Electronic Components
FIXED IND 3.3UH 270MA 120MOHM SM

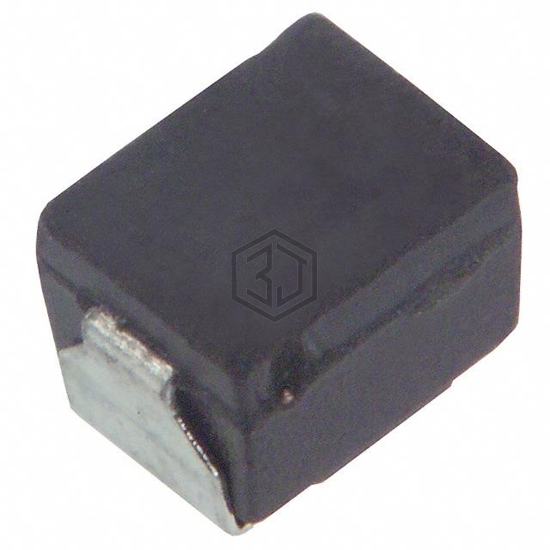

ELJ-EA3R3MF is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 3.3UH 270MA 120MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 85°C, package / case 1210 (3225 Metric), current rating (amps) 270 mA.
In Stock: 29,443
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 270 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 120mOhm Max |
| Q @ Freq | 7 @ 7.96MHz |
| Frequency - Self Resonant | 50MHz |
| Ratings | - |
| Operating Temperature | -20°C ~ 85°C |
| Inductance Frequency - Test | 7.96 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.094" (2.40mm) |
Submit your RFQ for ELJ-EA3R3MF and get a quote within 24 hours.
