Panasonic Electronic Components
FIXED IND 150UH 45MA 3.1 OHM SMD

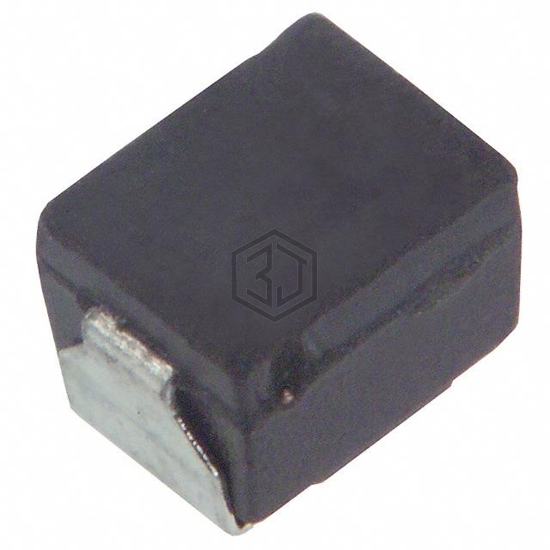

ELJ-EA151KF is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 150UH 45MA 3.1 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 85°C, package / case 1210 (3225 Metric), current rating (amps) 45 mA.
In Stock: 18,205
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 150 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 45 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 3.1Ohm Max |
| Q @ Freq | 20 @ 796kHz |
| Frequency - Self Resonant | 7MHz |
| Ratings | - |
| Operating Temperature | -20°C ~ 85°C |
| Inductance Frequency - Test | 796 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.094" (2.40mm) |
