Panasonic Electronic Components
FIXED IND 15UH 145MA 320MOHM SMD

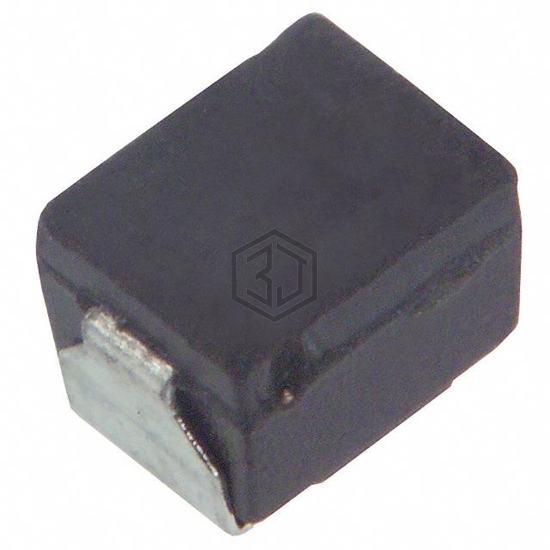

ELJ-EA150KF is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 15UH 145MA 320MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 85°C, package / case 1210 (3225 Metric), current rating (amps) 145 mA.
In Stock: 600
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 15 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 145 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 320mOhm Max |
| Q @ Freq | 10 @ 2.52MHz |
| Frequency - Self Resonant | 25MHz |
| Ratings | - |
| Operating Temperature | -20°C ~ 85°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.094" (2.40mm) |
