Panasonic Electronic Components
CMC 5.6MH 2.2A 2LN TH

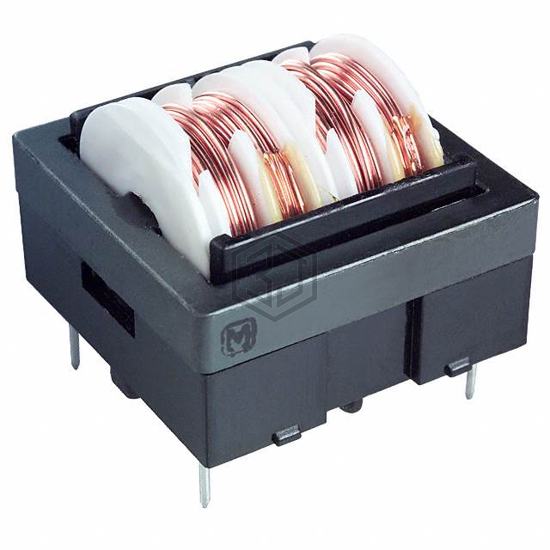

ELF-18D603F is a Common Mode Chokes manufactured by Panasonic Electronic Components. CMC 5.6MH 2.2A 2LN TH. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 105°C, voltage rating - ac 250V, package / case Vertical, 4 PC Pin.
In Stock: 67
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Filter Type | - |
| Number of Lines | 2 |
| Impedance @ Frequency | - |
| Inductance @ Frequency | 5.6 mH @ 1 kHz |
| Current Rating (Max) | 2.2A |
| DC Resistance (DCR) (Max) | 111mOhm (Typ) |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 250V |
| Operating Temperature | -20°C ~ 105°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.122" L x 1.142" W (28.50mm x 29.00mm) |
| Height (Max) | 0.925" (23.50mm) |
| Package / Case | Vertical, 4 PC Pin |
Submit your RFQ for ELF-18D603F and get a quote within 24 hours.
