Panasonic Electronic Components
FIXED IND 6.8UH 680MA 250MOHM SM

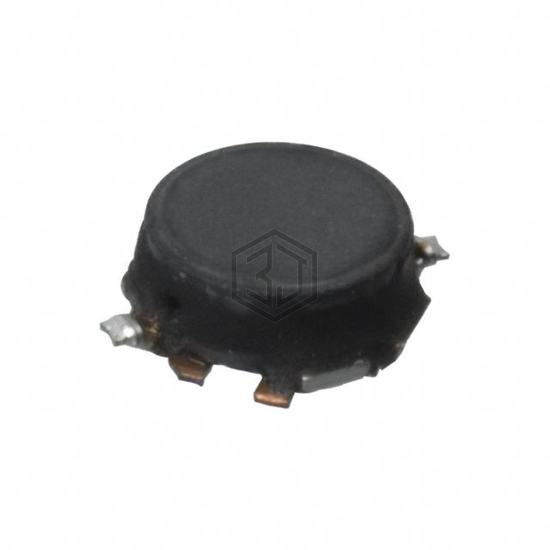

ELC-3GN6R8N is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 6.8UH 680MA 250MOHM SM. Key specifications: mounting type Surface Mount, package / case Nonstandard, current rating (amps) 680 mA, size / dimension 0.126" L x 0.126" W (3.20mm x 3.20mm).
In Stock: 4,405
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | - |
| Material - Core | - |
| Inductance | 6.8 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 680 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 250mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.126" L x 0.126" W (3.20mm x 3.20mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
Submit your RFQ for ELC-3GN6R8N and get a quote within 24 hours.
